Fred's Network Music Player System
October 2018. I have revising this page because the device I describe in
the original text below
(a Squeezebox) is no longer available, AND mine died! So while I am
leaving the info on the Squeezebox below, I'm giving you my replacement setup
first...
This gist of what I have done for the current installation is the following:
- Years ago I digitized all my CDs (also known as
"ripping" CDs). I did this by
using Apple's iTunes product which "imported" the CD's
contents when it was inserted in the DVD/CD reader on my laptop, and I asked
iTunes to save the CD to disk using their "lossless" format, which is
discussed in the original text below. As mentioned in the original
text, you have the option of "cleaning up" any textual import errors, like
the spelling of the artist's name, album or song titles, or the genre.
- I have a "whole house" music system: basically an
amplifier which takes multiple inputs, controlled from wall
switches in many rooms, and feeds the sound from that input to speakers in
the ceiling. The concept here would work the same for any
amplifier
which feeds any speaker.
- I purchased (as a replacement for my Squeezebox) a Bluetooth
Streaming Audio Adapter, which connects to my iPad via
Bluetooth and outputs its signal to the same amplifier I used
previously. The exact model I bought has the incredibly long name,
TP-Link NFC-Enabled Bluetooth 4.1 Receiver, Wireless Audio Adapter Streaming
Music from Echo Smart Phone Tablet PC to Home Car Stereo Sound System
(HA100). Clicking the link should take you to it. I paid
$22, plugged it in, connected it via Bluetooth, and it worked instantly and
flawlessly. It's only a couple of inches in size as seen in the image
below.
- I now use my iPad to access my entire music collection
via Apple's Music app:
.
Don't have an iPad? Use your iPhone or Android
device.
- That said, I also use my iPad to play music from Pandora
via the same system. Whatever music app you use on your iPad or iPhone
or Android device plays through your speakers.
What follows is the original text of this page which may have some tidbits of
information some of you find useful. Please note that NO COMPANY MAKES A
DEVICE LIKE A SQUEEZEBOX TODAY. Some folks have built their own using a
Raspberry Pi, but that's another story ...
ORIGINAL TEXT
(mostly outdated now)
For many years I wanted to digitize my music CD collection and be able to
control and play the selections via my home audio system (which is actually
connected to a "whole house" audio system with speakers and controls in multiple
rooms). I finally figured out how to do this, and here is a description of
my system and the steps involved to set it up.
The product described here was discontinued in all
versions by Logitech in August 2012.
Similar products may be available from other companies, but I am not
familiar with them.
The information is maintained here to familiarize you with the steps
involved!
The system in brief
- All my CDs digitized ("ripped") to a hard disk (external to my
computer, so I can easily move it to a different computer later). This form
of copying CDs is perfectly legal (as long as you own the CD).
- A software control program to organize and access the music (mine
is called Slim Server and is free).

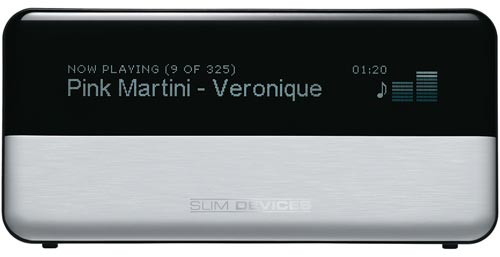

- A hardware device to convert the digitized music to a "line out"
signal to pass to a home stereo. This device (a Squeezebox in my case,
pictured below) communicates with the server and me (via a hand-held remote or
the software).
The process I used to do this
- First, I should point out that I have a home network consisting of a
router and other family computers. The items below were installed on my
laptop. You do need a router or a server to which the hardware device
(Squeezebox) connects via TCP/IP, either using an Ethernet cable or wirelessly
(which was my choice).
- I purchased a standalone hard disk. I wanted at least 100 GB, but
I bought a 250 GB Western Digital "My Book" hard drive which plugs into the
USB port and has an external power supply. I paid only $75 after rebates, so
I feel I got a good bargain. I reformatted the hard disk (per the
instructions) from its native FAT32 format to NTFS. Then I decided to divide
it into two partitions, one of which would be devoted to backups of other
software, since I didn't need all the space for music. FYI, each CD takes up,
on average, 300 MB using the method described below.
- I ordered a Squeezebox by Slim Devices (www.slimdevices.com
[the link now takes you to Logitech]).
It cost $299. An alternative, less expensive product might
be a Roku Soundbridge (www.rokulabs.com
[the link now takes you to Roku])).
Try this search to find more:
http://www.google.com/search?q=network+music+player.
- While waiting for it to arrive, I ripped all 300 or so of my CDs using
iTunes, free software from Apple. I did not own an iPod at that time, but
anyone can use iTunes. The reason I used iTunes is that I wanted to store my
CDs in what is called lossless format, and Apple has a good one. Lossless
formats (there are several of them) take up a lot more storage space than
lossy formats (like MP3), but you retain musical integrity. Since I was
buying a separate hard disk, what the heck, I had the space! I am told that
Windows Media Player also has a lossless format, but it takes up more space.
FLAC is the name of another such format, and there are various products which
you can use to rip CDs losslessly. My CDs take up about 300 MB each.
- I set the iTunes Preferences under the Advanced tab as follows:
- On the General sub-tab: Point to the "Music" directory I created on my
new hard disk; Keep iTunes music folder organized; and Copy files to iTunes
folder when adding to library
- On the Importing sub-tab: On CD Insert, Import CE and Eject; Import Using
Apple Lossless Encoder; Automatically retrieve CD names from Internet; and
Create filenames with track number
- I did not choose to use error correction (which was recommended by a
friend) because it took too long to rip each CD; however, doing so would help
avoid occasional dropouts, a problem I did discover later.
- I fed my CDs to my CD ROM one by one over several days while doing other
things. Each one took several minutes to rip. Occasionally a CDs information
couldn't be looked up online properly, so I deferred those CDs to handle
later, manually.
-

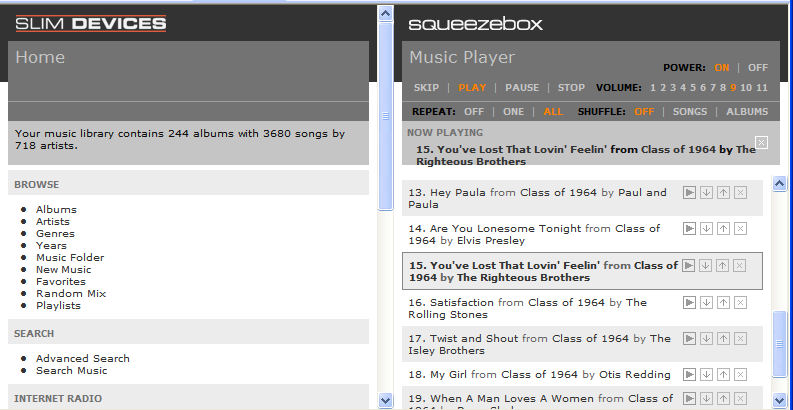

I installed Slim Server (free software from Slim Devices'
website), which is now called Logitech Media Server. It is
controlled primarily via your browser. The images below are not from the
current software, but they are similar, to make the points. On the left
side, you control the library; on the right side, you control the Squeezebox
(such as building a dynamic Playlist and telling it what to play next).
You can even access this server from another computer connected to your
internal network.
- I setup a few parameters, including scanning my entire new music library
to organize it for use with my Squeezebox. When additional songs are added,
the Slim Server finds them automatically.

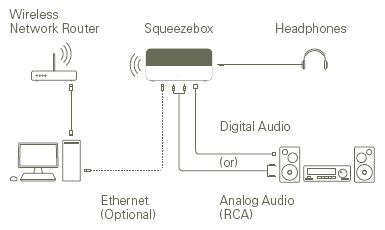

- When the Squeezebox arrived, I unpacked it, plugged in the power cord,
used the supplied cable to connect the Squeezebox to my audio system, and
blazed through the setup process. Using the supplied remote, I answered a
half dozen questions posed on the screen of the Squeezebox. It automatically
located my wireless network and prompted me for things like the encryption
key; then I was done, ready to play music, as it automatically located my
running copy of Slim Server, too!
- Later, I was able to go back to iTunes to setup Playlists, which the
Squeezebox honors. And by the way, the Squeezebox also offers thousands of
Internet radio stations, news feeds, nature sounds, and you can set it to
shutoff automatically after x minutes.
That's it. Now I am enjoying getting familiar with my CD collection
again.
A few more technical notes
- I decided to "clean up" errors introduced during the import process by
incorrect spellings and missing tags. For instance, I found one of the album
compilations included a song by "Dianna Ross." This misspelling meant I later
found two separate Artist entries for Ms Ross: one for Dianna and one for
Diana. By selecting the song in iTunes, right clicking, and choosing Get
Info, you can alter any of the tags recorded for the song. I also did things
like sort by Genre and expand the listing of "Unclassifiable" to determine
which songs had missing Genres. Whether or not you go to the trouble of
examining all the compilations to break out the artists by song is up to you!
- I use the Pandora interface more than anything else. Unlike direct access
to Pandora via a browser, there are no time limits on use.
